TImg

2017-10-07, post № 181

BASIC, PIL, programming, Python, TI-84 Plus, #bitmap, #image, #TI, #TI-BASIC

Texas Instrument’s TI-84 Plus is a graphing calculator with a variety of features. It has built-in support for both fractions and complex numbers, can differentiate and integrate given functions and supports programming capabilities. The latter allows to directly manipulate the calculator’s monochrome display’s 𝟧𝟫𝟪𝟧 pixels (the screen has dimensions 𝟫𝟧 ⨉ 𝟨𝟥). TImg is a Python program (source code is listed below and can also be downloaded) which takes in an image and outputs TI-BASIC source code which, when run on the graphing calculator, will produce the given image — in potentially lower quality.

TI-84 Plus’ screen dimensions (bitmap).

PIL — the Python Imaging Library — is used to read in the image and further for processing. The supplied image may be rotated and resized to better fit the TI-84’s screen and any color or even grayscale information is reduced to an actual bitmap — every pixel only has two distinct values.
Direct pixel manipulation on the TI-84 is done via the Graph screen. To get remove any pixels the system draws on its own, the first three commands are ClrDraw, GridOff and AxesOff which should result in a completely blank screen — assuming that no functions are currently being drawn. All subsequent commands are in charge of drawing the previously computed bitmap. To turn certain pixels on, Pxl-On(Y,X is used where 𝑌 and 𝑋 are the pixel’s coordinates.

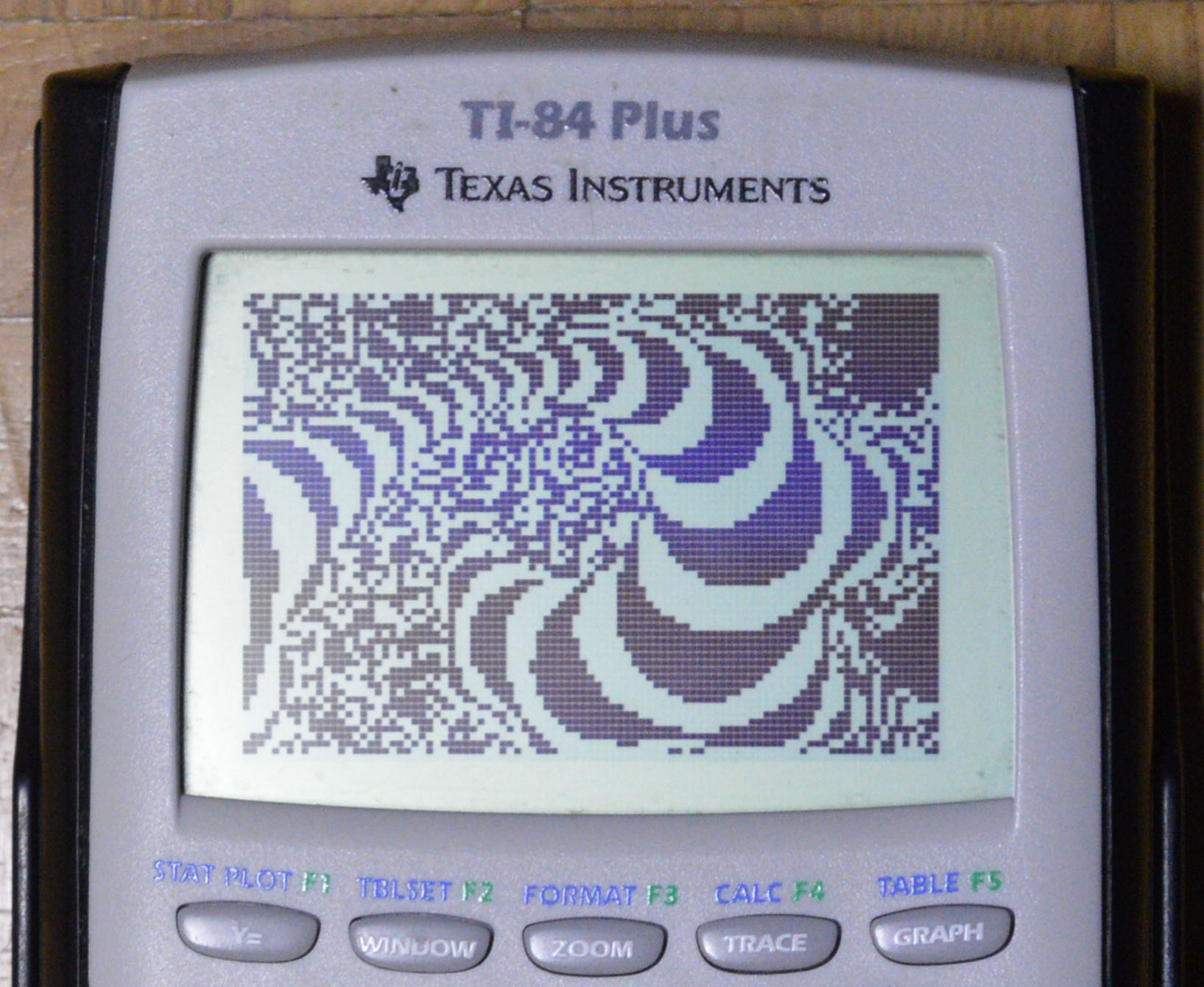

A fractal (bitmap).

Since the TI-84 Plus only has 𝟤𝟦 kilobytes of available RAM, the source code for a program which would turn on every single pixel individually does not fit. Luckily, though, a program which only individually turns on half of the screen’s pixels fits. To ensure that TImg’s output fits on the hardware it is designed to be used with, an image’s bitmap is inverted when the required code would otherwise exceed 𝟥𝟧𝟢𝟢 lines — a value slightly above the required code to draw half of the pixels.

A fractal (input image).
Source code: timg.py
